Volume
MASTER, GUITAR, DRUMS, JAM and METRO faders, plus the noise GATE — and where MUTE actually lives.

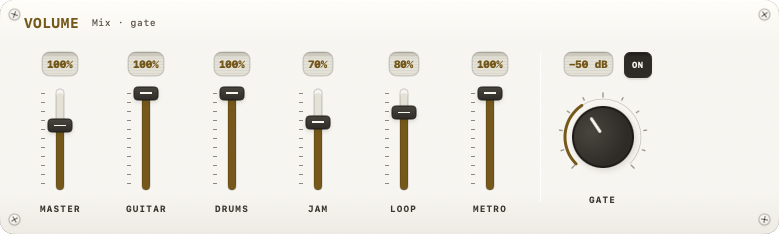

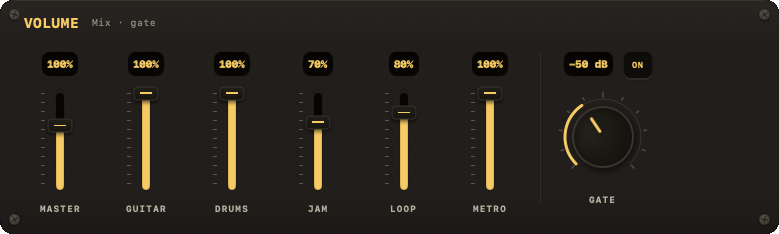

The VOLUME module holds every level fader in the session.
Faders
| Fader | Range | Default |
|---|---|---|
| MASTER | 0 – 1.5 | 1.0 |
| GUITAR | 0 – 1 | 1.0 |
| DRUMS | 0 – 1 | 1.0 |
| JAM | 0 – 1 | 0.7 |
| METRO | 0 – 1 | 1.0 |
| LOOP | 0 – 1 | 1.0 |
LOOP is the looper's level (since 0.72). MASTER's range goes above unity (up to 1.5) for a bit of extra headroom on the output; a mark on the fader shows where 1.0 is. The others are capped at 1.0.
GATE
An ON key plus a threshold knob that gates your guitar input below a noise floor. Range −80 to 0 dB; enabled by default with a threshold of −50 dB.
MUTE is not here
Note
MUTE is a transport bar control (bottom of the window), not part of the VOLUME module — see Transport.
