Tools
Tuner

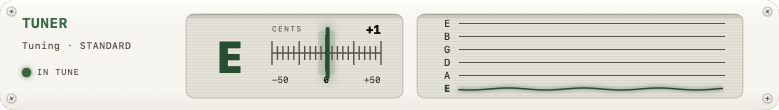

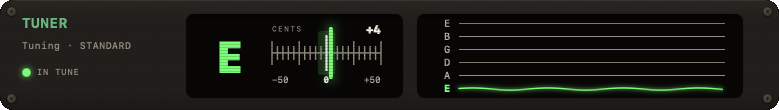

The TUNER plate — the note beside a cents gauge with a needle, and the six strings of your tuning.
The tuner listens to your guitar through the input and shows pitch live.
Opening it
TUNER in the transport bar (T), or the T key. While it's on it is a plate in the left panel, titled TUNER with your tuning beside it ("Tuning · Standard"); an IN TUNE LED in the title block lights when you're there.
Click its screens to see them big. Since 0.71 a click lifts the same two screens — the meter and the strings — onto a wide sheet under SESSION, at twice the size: on an iPad on a stand the rack's tuner is a squint from where you play. ESC or a click beside the sheet closes it; the plate keeps listening underneath.
| Key | Action |
|---|---|
| T | Tuner |
| M | Metronome (the transport never stops it) |
| C | Chord detect (listens to what you play) |
| ⌃C | Chord visualizer popup |
| Q | Quickstart (when the band is stopped) |
| S | Song browser |
| ⌘N | New song in the editor (SONGS open) |
| P | Play-along view (big chords + shapes) |
| I | This overlay |
| ESC | Close topmost panel |
| L | Looper: record, or add a layer while it plays |
| ⇧L | Looper: play / stop |
| U | Looper: take the last layer back |
| ⌥L | Looper: clear |
Display
- On the left, a large note name beside a cents gauge from −50 to +50, in 5-cent steps, with the in-tune window marked on it. A needle sits at the reading and a number beside the gauge says how many cents sharp or flat you are. No octave and no Hz. Green when you're in tune, amber as you drift, red far out; amber also when you're in tune with a note that isn't one of this tuning's strings. Shows "--" when there's no signal for more than 1.5 seconds.
- On the right, the 6 strings (high E to low E, top to bottom), each with its target note in the tuning you chose in KEY — so drop and open tunings read correctly. The string being played vibrates and takes the same colour ramp: amber on the way, green when in tune.
Calibration
Reference pitch defaults to A440, adjustable from 420–460 Hz for players who tune to 432 or 442 Hz. There's no on-screen calibration control in this build's tuner panel beyond the underlying reference-pitch setting.
Also used silently by scale practice
The tuner's pitch detection also powers the note-finding scale practice, without opening the visible TUNER panel.
